下面的例子是在RAC的primary和standby上操作的
primary（db_unique_name=racdb），lnxrac12c1、lnxrac12c2
standby（db_unique_name=racdbs），lnxmem2、lnxmem3

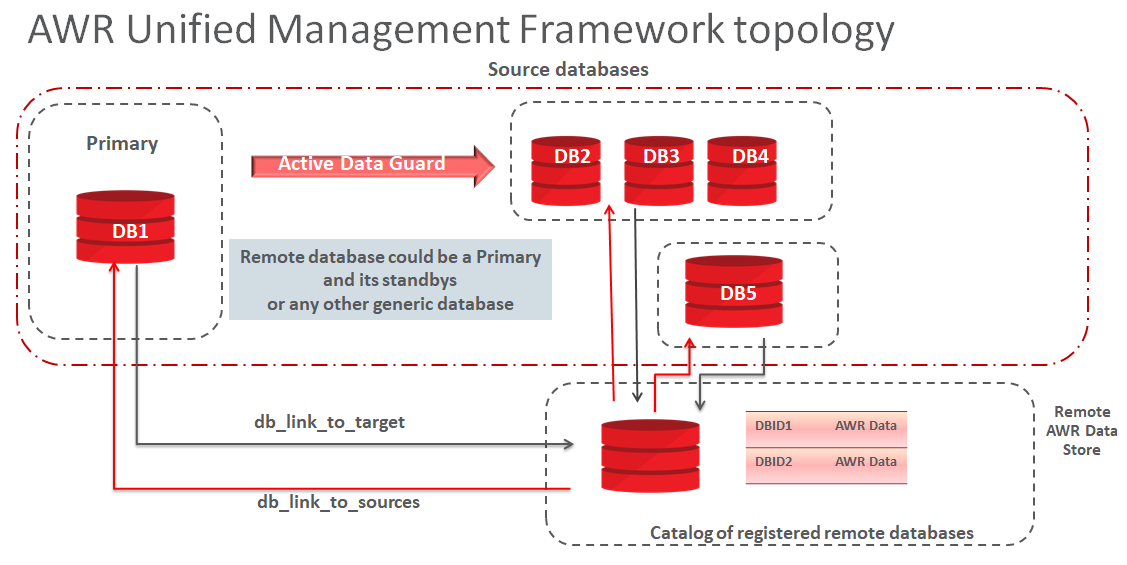

本文中，在主库上执行的，显示为PRIM>，在备库上执行显示为STBY>，也就是图片中的这几个步骤
1.确认备库的open mode和database role
STBY> select inst_id, open_mode, database_role from gv$database order by 1;
INST_ID OPEN_MODE DATABASE_ROLE
---------- -------------------- ----------------
1 READ ONLY WITH APPLY PHYSICAL STANDBY
2 READ ONLY WITH APPLY PHYSICAL STANDBY
2.在Primary上解锁用户
SYS$UMF用户是默认的数据库用户，拥有访问RMF视图和表的所有权限。RMF中的所有AWR相关操作只能由SYS$UMF用户执行。默认情况下，SYS$UMF用户是被锁定的，在部署RMF Toplogy之前必须解锁。
PRIM> alter user sys$umf identified by sysumf account unlock;
3.在Primary上创建主备库上的database link
PRIM>create database link dbl_racdb_to_racdbs CONNECT TO sys$umf IDENTIFIED BY sysumf using 'racdbs';
PRIM>create database link dbl_racdbs_to_racdb CONNECT TO sys$umf IDENTIFIED BY sysumf using 'racdb';
4.配置数据库，然后增加到Topology
在primary上执行
PRIM>exec dbms_umf.configure_node ('prim');#如果执行exec dbms_umf.configure_node()，默认会使用db_unique_name
在standby上执行(在备库上，相对来说，主库是远端的库，我们可以通过dblink来注册)
STBY>exec dbms_umf.configure_node ('stby','dbl_racdbs_to_racdb');
5.创建RMF Topology
在Primary上执行
PRIM>exec dbms_umf.create_topology ('Topology_1');
6.注册standby数据库到Toplogy
在primary上执行
PRIM>exec dbms_umf.register_node ('Topology_1', 'stby', 'dbl_racdb_to_racdbs', 'dbl_racdbs_to_racdb', 'FALSE', 'FALSE');
PL/SQL procedure successfully completed.
启用adg上的awr服务
PRIM>exec dbms_workload_repository.register_remote_database(node_name=>'stby');
PL/SQL procedure successfully completed.
如果想停用，可以执行下面的命令
SQL> exec DBMS_WORKLOAD_REPOSITORY.unregister_remote_database(node_name=>'stby');
可能会碰到的问题
If you encounter "ORA-15766: already registered in an RMF topology" unregister the node as below and then rerun "DBMS_UMF.register_node":
exec DBMS_UMF.unregister_node ('Topology_1', 'stby');
PL/SQL procedure successfully completed.
If you encounter "ORA-13519: Database id (1730117407) exists in the workload repository" unregister the remote database as below and then rerun "DBMS_WORKLOAD_REPOSITORY.register_remote_database":
exec DBMS_WORKLOAD_REPOSITORY.unregister_remote_database('stby','Topology_1',TRUE);
PL/SQL procedure successfully completed.
7.校验配置信息set line 132
col topology_name format a15
col node_name format a15
select * from dba_umf_topology;
select * from dba_umf_registration;
select * from dba_umf_service;
select * from dba_umf_link;
SQL> select * from dba_umf_topology; TOPOLOGY_NAME TARGET_ID TOPOLOGY_VERSION TOPOLOGY --------------- ---------- ---------------- -------- Topology_1 2014871576 6 ACTIVE SQL> select * from dba_umf_registration; TOPOLOGY_NAME NODE_NAME NODE_ID NODE_TYPE AS_SO AS_CA STATE --------------- --------------- ---------- ---------- ----- ----- -------------------- Topology_1 prim 2014871576 0 FALSE FALSE OK Topology_1 stby 1730117407 0 FALSE FALSE OK SQL> select * from dba_umf_service; TOPOLOGY_NAME NODE_ID SERVICE --------------- ---------- ------- Topology_1 1730117407 AWR8.通过RMF创建快照
在primary上执行
PRIM>exec dbms_workload_repository.create_remote_snapshot('stby');
可能会碰到的问题

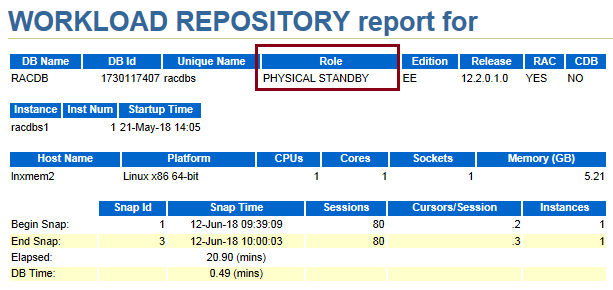

We need to run at least two to get the begin_snap and end_snap. If you encounter "ORA-13516: AWR Operation failed: Remote source not registered for AWR" then manually switch a few (2-3) logfiles on primary: alter system switch logfile;9.创建AWR报告

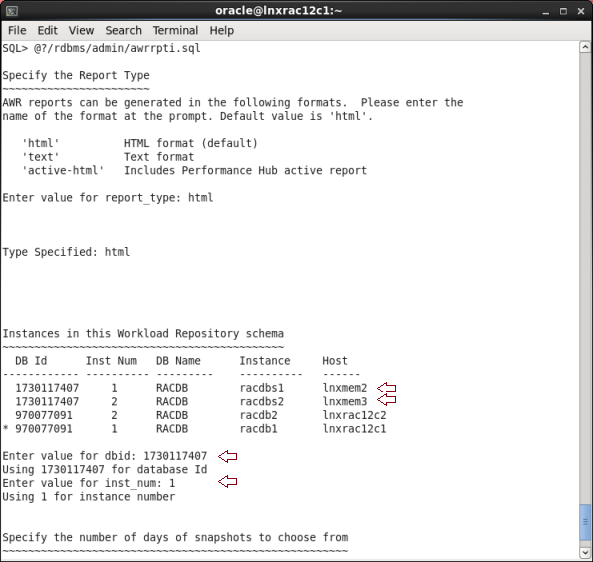

PRIM>@?/rdbms/admin/awrrpti.sql
10.如果ADG角色发生改变，我们还可以通过来切换（前提是已完成步骤A和步骤B的操作）
A.在源端数据库上创建LinkSQL> EXEC DBMS_UMF.CREATE_LINK (topology name,
source name,
candidate destination name,
source to candidate destination database link,
candidate destination to source database link);
B.在角色改变之前，至少为备库创建一个snapshot
C.角色切换后通过下面的命令即可
SQL> EXEC DBMS_UMF.SWITCH_DESTINATION(topology name, force_switch=>FALSE);
Reference
How to Generate AWRs in Active Data Guard Standby Databases (Doc ID 2409808.1)
https://docs.oracle.com/en/database/oracle/oracle-database/12.2/tgdba/gathering-database-statistics.html#GUID-309C107F-DC42-4119-9904-9504E9748B84
https://www.oracle.com/technetwork/database/availability/con6531-oracle-active-data-guard-3334919.pdf
https://docs.oracle.com/en/database/oracle/oracle-database/18/tgdba/gathering-database-statistics.html#GUID-8DEFFB31-87F0-45D4-9E3E-C788AE88C5E7https://docs.oracle.com/database/122/TGDBA/gathering-database-statistics.htm#TGDBA232
https://docs.oracle.com/en/database/oracle/oracle-database/18/arpls/DBMS_WORKLOAD_REPOSITORY.html
https://docs.oracle.com/en/database/oracle/oracle-database/12.2/arpls/DBMS_UMF.html
