Oracle服务器的前部面板都差不多，包括Exadata，SPARC，exalogic，ZFS存储系列等等。原文可参考Note：1554892.1。Oracle的ILOM很方便，也有弊端，ILOM如果有问题，操作系统也就起不了。

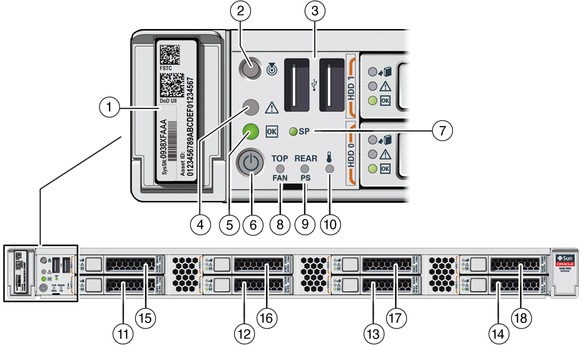

1 Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag
2 Locator LED/Locator button: white
3 USB 2.0 connectors (2)
4 Service Required LED: amber
5 Power/OK LED: green
6 Power button
7 SP OK LED: green
8 Fan Fault LED: amber
9 Power Supply (PS) Fault LED: amber
10 System Over Temperature LED: amber
11 Storage drive 0 (optional)
12 Storage drive 1 (optional)
13 Storage drive 2 (optional)
14 Storage drive 3 (optional)
15 Storage drive 4 (optional)
16 Storage drive 5 (optional)
17 Storage drive 6 (optional)
18 Storage drive 7 (optional) (In Oracle Engineered Systems, storage drive 7 might be populated with a remote battery module for the host bus adapter (HBA) card.)
