12c 如何通过DG Broker配置far_sync

DG broker是管理Data Guard环境的利器，她使用起来非常方便，易于管理，在很大程度上简化了DBA的工作量。一般情况下，DBA需要在主备库上修改log_archive_dest等相关参数，并且在主备库上都配置好，这样在后期的switchover才能保证不出问题。通过DG Broker，我们可以用几条简单的命令把整个环境搭建起来，用起来非常方便。

注意：通过DG Broker配置Data Guard环境，不需要再修log_archive_dest等参数。

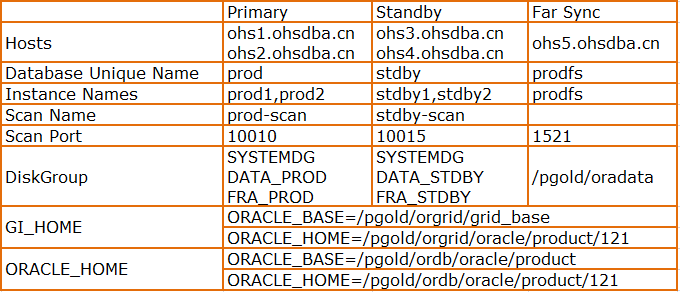

环境信息

通过DG Broker配置DG

[oracle@ohs1 ~]$ dgmgrl sys/oracle
DGMGRL for Linux: Version 12.1.0.2.0 - 64bit Production
Copyright (c) 2000, 2013, Oracle. All rights reserved.

Welcome to DGMGRL, type "help" for information.
Connected as SYSDG.
DGMGRL>
DGMGRL> create configuration dg_ohs as primary database is prod connect identifier is prod;
Configuration "dg_ohs" created with primary database "prod"
DGMGRL> add database stdby as connect identifier is stdby;
Database "stdby" added
DGMGRL> add far_sync prodfs as connect identifier is prodfs;
far sync instance "prodfs" added
DGMGRL> enable configuration;
Enabled.
DGMGRL> edit database prod set property redoroutes='(LOCAL : prodfs SYNC)';
Property "redoroutes" updated
DGMGRL> edit database stdby set property redoroutes='(LOCAL : prodfs SYNC)';
Property "redoroutes" updated
DGMGRL> edit far_sync prodfs set property redoroutes='(prod : stdby)(stdby: prod)';
Property "redoroutes" updated
DGMGRL> show configuration;

Configuration - dg_ohs

  Protection Mode: MaxPerformance
  Members:
  prod   - Primary database
    prodfs - Far sync instance
      stdby  - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
SUCCESS   (status updated 6 seconds ago)

DGMGRL>
DGMGRL> validate database verbose prod;

  Database Role:    Primary database

  Ready for Switchover:  Yes

  Capacity Information:
    Database  Instances        Threads
    prod      2                2

  Temporary Tablespace File Information:
    prod TEMP Files:  2

  Flashback Database Status:
    prod:  On

  Data file Online Move in Progress:
    prod:  No

  Transport-Related Information:
    Transport On:  Yes

  Log Files Cleared:
    prod Standby Redo Log Files:  Cleared

  Automatic Diagnostic Repository Errors:
    Error                       prod
    No logging operation        NO
    Control file corruptions    NO
    System data file missing    NO
    System data file corrupted  NO
    System data file offline    NO
    User data file missing      NO
    User data file corrupted    NO
    User data file offline      NO
    Block Corruptions found     NO

DGMGRL> validate database verbose stdby;

  Database Role:     Physical standby database
  Primary Database:  prod

  Ready for Switchover:  Yes
  Ready for Failover:    Yes (Primary Running)

  Capacity Information:
    Database  Instances        Threads
    prod      2                2
    stdby     2                2

  Temporary Tablespace File Information:
    prod TEMP Files:   1
    stdby TEMP Files:  1

  Flashback Database Status:
    prod:   On
    stdby:  On

  Data file Online Move in Progress:
    prod:   No
    stdby:  No

  Standby Apply-Related Information:
    Apply State:      Running
    Apply Lag:        0 seconds (computed 0 seconds ago)
    Apply Delay:      0 minutes

  Transport-Related Information:
    Transport On:      Yes
    Gap Status:        No Gap
    Transport Lag:     0 seconds (computed 0 seconds ago)
    Transport Status:  Success

  Log Files Cleared:
    prod Standby Redo Log Files:   Cleared
    stdby Online Redo Log Files:   Cleared
    stdby Standby Redo Log Files:  Available

  Current Log File Groups Configuration:
    Thread #  Online Redo Log Groups  Standby Redo Log Groups Status
              (prod)                  (stdby)
    1         3                       4                       Sufficient SRLs
    2         3                       4                       Sufficient SRLs

  Future Log File Groups Configuration:
    Thread #  Online Redo Log Groups  Standby Redo Log Groups Status
              (stdby)                 (prod)
    1         3                       4                       Sufficient SRLs
    2         3                       4                       Sufficient SRLs

  Current Configuration Log File Sizes:
    Thread #   Smallest Online Redo      Smallest Standby Redo
               Log File Size             Log File Size
               (prod)                    (stdby)
    1          50 MBytes                 50 MBytes
    2          50 MBytes                 50 MBytes

  Future Configuration Log File Sizes:
    Thread #   Smallest Online Redo      Smallest Standby Redo
               Log File Size             Log File Size
               (stdby)                   (prod)
    1          50 MBytes                 50 MBytes
    2          50 MBytes                 50 MBytes

  Apply-Related Property Settings:
    Property                        prod Value               stdby Value
    DelayMins                       0                        0
    ApplyParallel                   AUTO                     AUTO

  Transport-Related Property Settings:
    Property                        prod Value               stdby Value
    LogXptMode                      ASYNC                    ASYNC
    RedoRoutes                      (LOCAL : prodfs SYNC)    (LOCAL : prodfs SYNC)
    Dependency                      <empty>                  <empty>
    DelayMins                       0                        0
    Binding                         optional                 optional
    MaxFailure                      0                        0
    MaxConnections                  1                        1
    ReopenSecs                      300                      300
    NetTimeout                      30                       30
    RedoCompression                 DISABLE                  DISABLE
    LogShipping                     ON                       ON

  Automatic Diagnostic Repository Errors:
    Error                       prod     stdby
    No logging operation        NO       NO
    Control file corruptions    NO       NO
    SRL Group Unavailable       NO       NO
    System data file missing    NO       NO
    System data file corrupted  NO       NO
    System data file offline    NO       NO
    User data file missing      NO       NO
    User data file corrupted    NO       NO
    User data file offline      NO       NO
    Block Corruptions found     NO       NO

DGMGRL> validate far_sync verbose prodfs;
    Member Role:        Far Sync Instance
    When Primary Is:    prod

    Active Redo Source: prod
    Redo Destinations:
                        stdby

    Thread #  Online Redo Log Groups  Standby Redo Log Groups Status
              prod                    prodfs
    1         3                       4                       Sufficient SRLs
    2         3                       4                       Sufficient SRLs

  Transport-Related Information:
    Transport On:      Yes
    Gap Status:        No Gap
    Transport Lag:     0 seconds (computed 1 second ago)
    Transport Status:  Success

DGMGRL>
DGMGRL>

为far_sync实例配置alternate dest

DGMGRL> edit database stdby set property redoroutes='(LOCAL : prodfs SYNC alt=(prod async fallback))';
Error: ORA-16863: A member whose MaxFailure property is set to zero cannot have an alternate destination.
Failed.
DGMGRL> edit far_sync prodfs set property MaxFailure=3;
Property "maxfailure" updated
DGMGRL> edit database stdby set property redoroutes='(LOCAL : prodfs SYNC alt=(prod async fallback))';
Property "redoroutes" updated
DGMGRL> edit database prod set property redoroutes='(LOCAL : prodfs SYNC alt=(stdby async fallback))';
Property "redoroutes" updated
DGMGRL>

关闭far_sync实例，验证alternate dest

[oracle@ohs5 ~]$ sqlplus / as sysdba

SQL*Plus: Release 12.1.0.2.0 Production on Thu Jan 5 10:10:55 2017

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

SQL> shut abort
ORACLE instance shut down.
SQL>
[oracle@ohs1 ~]$ dgmgrl sys/oracle
DGMGRL for Linux: Version 12.1.0.2.0 - 64bit Production

Copyright (c) 2000, 2013, Oracle. All rights reserved.

Welcome to DGMGRL, type "help" for information.
Connected as SYSDG.
DGMGRL>
DGMGRL> show configuration;
Configuration - dg_ohs

  Protection Mode: MaxPerformance
  Members:
  prod   - Primary database
    stdby  - Physical standby database (alternate of prodfs)

  Members Not Receiving Redo:
  prodfs - Far sync instance
    Warning: ORA-01034: ORACLE not available

Fast-Start Failover: DISABLED

Configuration Status:
WARNING   (status updated 42 seconds ago)

DGMGRL>

注意：关闭far_sync后，可以观察到日志直接从prod到stdby。说明far_sync的ALT配置没有问题

启动far_sync实例，查看配置

[oracle@ohs5 admin]$ sqlplus / as sysdba
SQL*Plus: Release 12.1.0.2.0 Production on Thu Jan 5 10:15:43 2017
Copyright (c) 1982, 2014, Oracle.  All rights reserved.
Connected to an idle instance.

SQL> startup
ORACLE instance started.

Total System Global Area  209715200 bytes
Fixed Size                  2922712 bytes
Variable Size             113248040 bytes
Database Buffers           88080384 bytes
Redo Buffers                5464064 bytes
Database mounted.
ORA-16476: far sync instance does not allow Open operation
SQL>
[oracle@ohs1 ~]$ dgmgrl sys/oracle
DGMGRL for Linux: Version 12.1.0.2.0 - 64bit Production

Copyright (c) 2000, 2013, Oracle. All rights reserved.

Welcome to DGMGRL, type "help" for information.
Connected as SYSDG.
DGMGRL>

DGMGRL> show configuration;

Configuration - dg_ohs

  Protection Mode: MaxPerformance
  Members:
  prod   - Primary database
    prodfs - Far sync instance
      stdby  - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
SUCCESS   (status updated 1 second ago)

DGMGRL>

switchover测试

DGMGRL> show configuration;

Configuration - dg_ohs

  Protection Mode: MaxPerformance
  Members:
  prod   - Primary database
    prodfs - Far sync instance
      stdby  - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
SUCCESS   (status updated 25 seconds ago)

DGMGRL> switchover to stdby;
Performing switchover NOW, please wait...
Operation requires a connection to instance "stdby2" on database "stdby"
Connecting to instance "stdby2"...
Connected as SYSDBA.
New primary database "stdby" is opening...
Oracle Clusterware is restarting database "prod" ...
Switchover succeeded, new primary is "stdby"
DGMGRL>
DGMGRL> show configuration;

Configuration - dg_ohs

  Protection Mode: MaxPerformance
  Members:
  stdby  - Primary database
    prodfs - Far sync instance
      Warning: ORA-16778: redo transport error for one or more databases

    prod   - Physical standby database (alternate of prodfs)
      Warning: ORA-16858: last communication time from redo source could not be determined

Fast-Start Failover: DISABLED

Configuration Status:
WARNING   (status updated 37 seconds ago)

DGMGRL> show configuration;

Configuration - dg_ohs

  Protection Mode: MaxPerformance
  Members:
  stdby  - Primary database
    prodfs - Far sync instance
      prod   - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
SUCCESS   (status updated 40 seconds ago)
DGMGRL>

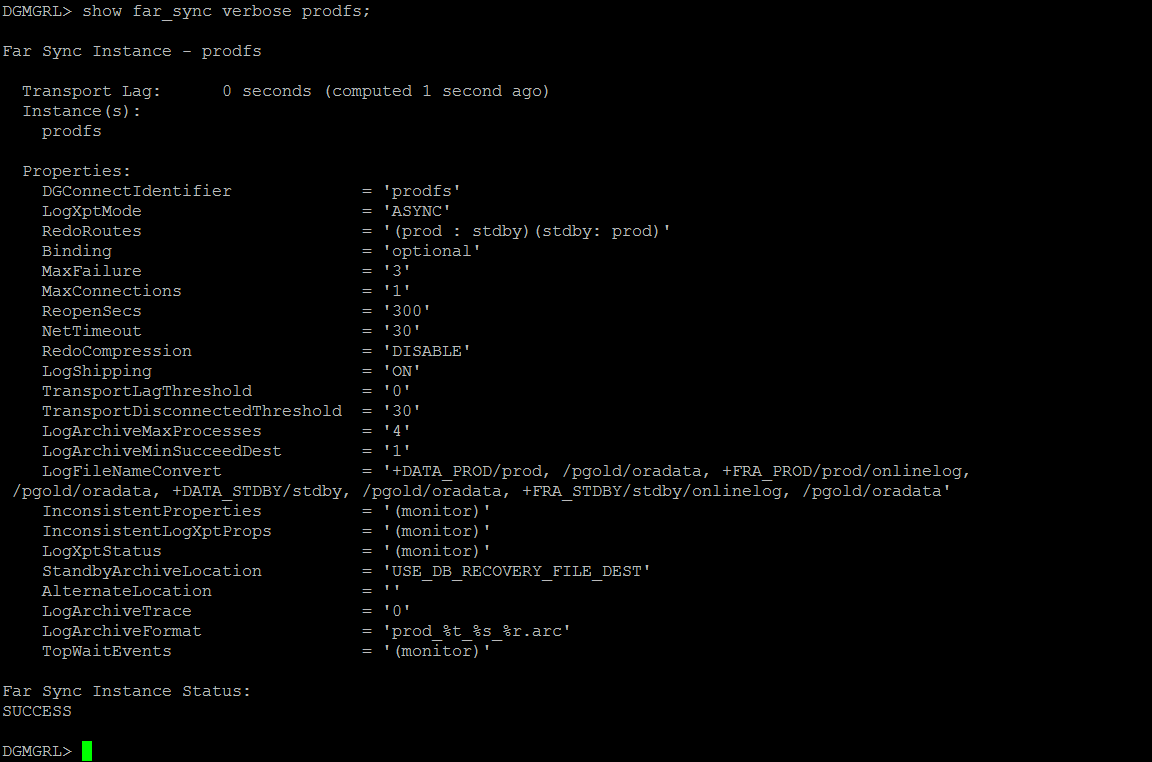

注意：切换过程中，far_sync实例无需重启，整个切换过程对far_sync来说是透明的，但要注意LogFileNameConvert的设置

far_sync HA配置

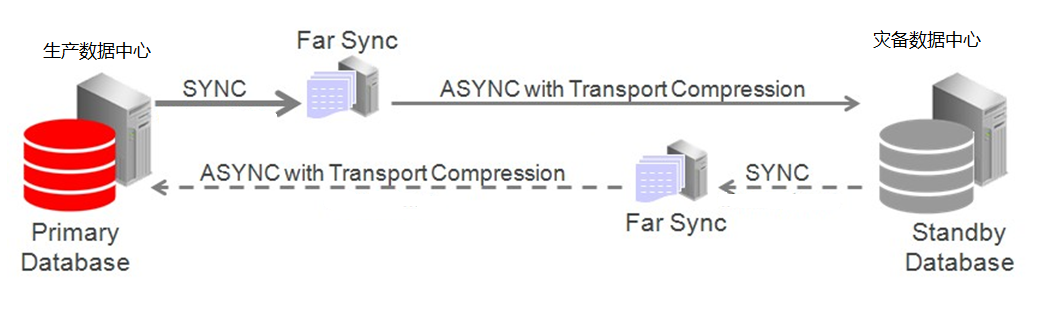

在生产数据中心有一个主库和一个far_sync实例，在灾备数据中心有一个备库和一个far_sync实例。当生产数据中心的数据库为主库时，使用距离生产数据中心较近的far_sync实例。当灾备数据中心的数据库为主库时，使用距离灾备中心较近的far_sync实例

配置命令如下
DGMGRL> create configuration dg_ohs as primary database is prod connect identifier is prod;
DGMGRL> add database stdby as connect identifier is stdby;
DGMGRL> add far_sync prodfs as connect identifier is prodfs;
DGMGRL> add far_sync stdbyfs as connect identifier is stdbyfs;
DGMGRL> edit database prod set property redoroutes='(LOCAL : prodfs SYNC)';
DGMGRL> edit database stdby set property redoroutes='(LOCAL : stdbyfs SYNC)';
DGMGRL> edit far_sync prodfs set property redoroutes='(prod : stdby)';
DGMGRL> edit far_sync stdbyfs set property redoroutes='(stdby : prod)';
DGMGRL> enable configuration;

Bug 19399918

Bug 19399918  Role transition fails with terminal standby as alternate of far sync (ORA-16778)

DGMGRL> switchover to stdby
Performing switchover NOW, please wait...
Error: ORA-16778: redo transport error for one or more databases

Failed.
Unable to switchover, primary database is still "prod"

[oracle@ohs1 ~]$ /pgold/ordb/oracle/product/121/OPatch/opatch lsinv |grep 19399918
     19058490, 19032777, 20781373, 19399918, 20540694, 22184431, 19434529
[oracle@ohs1 ~]$

Potential issue（潜在的问题）

如果far_sync配置了ALT，在DG Broker中通过validate命令时，会重置LOG_ARCHIVE_DEST_3，这个应该是Bug。

[oracle@ohs1 ~]$ adrci

ADRCI: Release 12.1.0.2.0 - Production on Thu Jan 5 11:05:30 2017

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

ADR base = "/pgold/ordb/log"
adrci> show alert -tail 50
2017-01-05 10:59:59.760000 -05:00
LGWR: Setting 'active' archival for destination LOG_ARCHIVE_DEST_2
******************************************************************
LGWR: Standby redo logfile selected for thread 1 sequence 460 for destination LOG_ARCHIVE_DEST_2
Thread 1 advanced to log sequence 460 (LGWR switch)
  Current log# 5 seq# 460 mem# 0: +FRA_PROD/prod/onlinelog/group_5.257.929587199
Archived Log entry 1625 added for thread 1 sequence 459 ID 0x1486590f dest 1:
ARC0: Standby redo logfile selected for thread 1 sequence 459 for destination LOG_ARCHIVE_DEST_2
minact-scn: Inst 1 is a slave inc#:6 mmon proc-id:28085 status:0x2
minact-scn status: grec-scn:0x0000.00000000 gmin-scn:0x0000.00000000 gcalc-scn:0x0000.00000000
2017-01-05 11:00:01.222000 -05:00
No Resource Manager plan active
2017-01-05 11:00:03.812000 -05:00
Starting background process AQPC
AQPC started with pid=64, OS id=7204
2017-01-05 11:00:06.120000 -05:00
Starting background process CJQ0
Completed: ALTER DATABASE OPEN
CJQ0 started with pid=66, OS id=7222
ALTER SYSTEM SET log_archive_trace=0 SCOPE=BOTH SID='prod1';
ALTER SYSTEM SET log_archive_format='prod1_%t_%s_%r.arc' SCOPE=SPFILE SID='prod1';
ALTER SYSTEM SET standby_file_management='AUTO' SCOPE=BOTH SID='*';
ALTER SYSTEM SET archive_lag_target=0 SCOPE=BOTH SID='*';
ALTER SYSTEM SET log_archive_max_processes=4 SCOPE=BOTH SID='*';
ALTER SYSTEM SET log_archive_min_succeed_dest=1 SCOPE=BOTH SID='*';
ALTER SYSTEM SET db_file_name_convert='+DATA_STDBY/stdby','+DATA_PROD/prod' SCOPE=SPFILE;
ALTER SYSTEM SET log_file_name_convert='+DATA_STDBY/stdby','+DATA_PROD/prod' SCOPE=SPFILE;
2017-01-05 11:00:07.114000 -05:00
ALTER SYSTEM SET log_archive_dest_state_2='RESET' SCOPE=BOTH;
ALTER SYSTEM SET log_archive_dest_state_3='RESET' SCOPE=BOTH;
ALTER SYSTEM SET log_archive_dest_state_2='ALTERNATE' SCOPE=BOTH;
ALTER SYSTEM SET log_archive_dest_state_3='ALTERNATE' SCOPE=BOTH;
ALTER SYSTEM SET log_archive_dest_state_2='ENABLE' SCOPE=BOTH;
ALTER SYSTEM ARCHIVE LOG
2017-01-05 11:00:09.977000 -05:00
******************************************************************
LGWR: Setting 'active' archival for destination LOG_ARCHIVE_DEST_2
******************************************************************
LGWR: Standby redo logfile selected for thread 1 sequence 461 for destination LOG_ARCHIVE_DEST_2
Thread 1 advanced to log sequence 461 (LGWR switch)
  Current log# 1 seq# 461 mem# 0: +DATA_PROD/prod/redo01.log
Archived Log entry 1633 added for thread 1 sequence 460 ID 0x1486590f dest 1:
2017-01-05 11:00:19.094000 -05:00
Thread 1 cannot allocate new log, sequence 462
Checkpoint not complete
  Current log# 1 seq# 461 mem# 0: +DATA_PROD/prod/redo01.log
2017-01-05 11:00:25.622000 -05:00
******************************************************************
LGWR: Setting 'active' archival for destination LOG_ARCHIVE_DEST_2
******************************************************************
LGWR: Standby redo logfile selected for thread 1 sequence 462 for destination LOG_ARCHIVE_DEST_2
Thread 1 advanced to log sequence 462 (LGWR switch)
  Current log# 2 seq# 462 mem# 0: +DATA_PROD/prod/redo02.log
Archived Log entry 1639 added for thread 1 sequence 461 ID 0x1486590f dest 1:
2017-01-05 11:00:55.724000 -05:00
Thread 1 cannot allocate new log, sequence 463
Checkpoint not complete
  Current log# 2 seq# 462 mem# 0: +DATA_PROD/prod/redo02.log
2017-01-05 11:00:59.930000 -05:00
******************************************************************
LGWR: Setting 'active' archival for destination LOG_ARCHIVE_DEST_2
******************************************************************
LGWR: Standby redo logfile selected for thread 1 sequence 463 for destination LOG_ARCHIVE_DEST_2
Thread 1 advanced to log sequence 463 (LGWR switch)
  Current log# 5 seq# 463 mem# 0: +FRA_PROD/prod/onlinelog/group_5.257.929587199
Archived Log entry 1643 added for thread 1 sequence 462 ID 0x1486590f dest 1:
2017-01-05 11:02:47.360000 -05:00
This is cascading configuration.
LOG_ARCHIVE_DEST_3 has already been configured to switchover target stdby. Clearing LOG_ARCHIVE_DEST_3.
Using STANDBY_ARCHIVE_DEST parameter default value as USE_DB_RECOVERY_FILE_DEST
ALTER SYSTEM SET log_archive_dest_3='' SCOPE=MEMORY SID='*';
LOG_ARCHIVE_DEST3 is cleared.
Configuring a new LOG_ARCHIVE_DEST to switchover target stdby.
Using STANDBY_ARCHIVE_DEST parameter default value as USE_DB_RECOVERY_FILE_DEST
ALTER SYSTEM SET log_archive_dest_31='service=stdby ASYNC db_unique_name=stdby' SCOPE=MEMORY SID='*';
SWITCHOVER VERIFY: Send VERIFY request to switchover target stdby
Thread 1 cannot allocate new log, sequence 464
Checkpoint not complete
  Current log# 5 seq# 463 mem# 0: +FRA_PROD/prod/onlinelog/group_5.257.929587199
SWITCHOVER VERIFY COMPLETE
SWITCHOVER VERIFY WARNING: switchover target has no standby database defined in LOG_ARCHIVE_DEST_n parameter. If the switchover target is converted to a primary database, the new primary database will not be protected.
Using STANDBY_ARCHIVE_DEST parameter default value as USE_DB_RECOVERY_FILE_DEST
ALTER SYSTEM SET log_archive_dest_31='' SCOPE=MEMORY SID='*';
Data Guard Broker: Switchover processing will set LOG_ARCHIVE_DEST_n parameter. Continuing switchover
2017-01-05 11:02:51.058000 -05:00
LGWR: Standby redo logfile selected for thread 1 sequence 464 for destination LOG_ARCHIVE_DEST_2
Thread 1 advanced to log sequence 464 (LGWR switch)
  Current log# 1 seq# 464 mem# 0: +DATA_PROD/prod/redo01.log
Archived Log entry 1645 added for thread 1 sequence 463 ID 0x1486590f dest 1:
adrci>
DGMGRL> show database verbose prod;

Database - prod

  Role:               PRIMARY
  Intended State:     TRANSPORT-ON
  Instance(s):
    prod1
      Error: ORA-16736: unable to find the destination entry of standby database "stdby" in V$ARCHIVE_DEST
      Warning: ORA-16715: redo transport-related property RedoRoutes of standby database "prodfs" is inconsistent
      Warning: ORA-16728: consistency check for property LogXptMode found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property RedoRoutes found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property DelayMins found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property Binding found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property MaxFailure found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property MaxConnections found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property ReopenSecs found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property RedoCompression found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST

    prod2
      Error: ORA-16736: unable to find the destination entry of standby database "stdby" in V$ARCHIVE_DEST
      Warning: ORA-16715: redo transport-related property RedoRoutes of standby database "prodfs" is inconsistent
      Warning: ORA-16728: consistency check for property LogXptMode found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property RedoRoutes found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property DelayMins found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property Binding found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property MaxFailure found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property MaxConnections found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property ReopenSecs found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST
      Warning: ORA-16728: consistency check for property RedoCompression found ORA-16777 error
      Warning: ORA-16777: unable to find the destination entry of a standby database in V$ARCHIVE_DEST

  Properties:
    DGConnectIdentifier             = 'prod'
    ObserverConnectIdentifier       = ''
    LogXptMode                      = 'ASYNC'
    RedoRoutes                      = '(LOCAL : prodfs SYNC alt=(stdby async fallback))'
    DelayMins                       = '0'
    Binding                         = 'optional'
    MaxFailure                      = '0'
    MaxConnections                  = '1'
    ReopenSecs                      = '300'
    NetTimeout                      = '30'
    RedoCompression                 = 'DISABLE'
    LogShipping                     = 'ON'
    PreferredApplyInstance          = ''
    ApplyInstanceTimeout            = '0'
    ApplyLagThreshold               = '0'
    TransportLagThreshold           = '0'
    TransportDisconnectedThreshold  = '30'
    ApplyParallel                   = 'AUTO'
    StandbyFileManagement           = 'AUTO'
    ArchiveLagTarget                = '0'
    LogArchiveMaxProcesses          = '4'
    LogArchiveMinSucceedDest        = '1'
    DbFileNameConvert               = '+DATA_STDBY/stdby, +DATA_PROD/prod'
    LogFileNameConvert              = '+DATA_STDBY/stdby, +DATA_PROD/prod'
    FastStartFailoverTarget         = ''
    InconsistentProperties          = '(monitor)'
    InconsistentLogXptProps         = '(monitor)'
    SendQEntries                    = '(monitor)'
    LogXptStatus                    = '(monitor)'
    RecvQEntries                    = '(monitor)'
    StaticConnectIdentifier(*)
    StandbyArchiveLocation(*)
    AlternateLocation(*)
    LogArchiveTrace(*)
    LogArchiveFormat(*)
    TopWaitEvents(*)
    (*) - Please check specific instance for the property value

Database Status:
ERROR
DGMGRL>

Reference
http://docs.oracle.com/database/121/SBYDB/create_fs.htm#SBYDB5416
